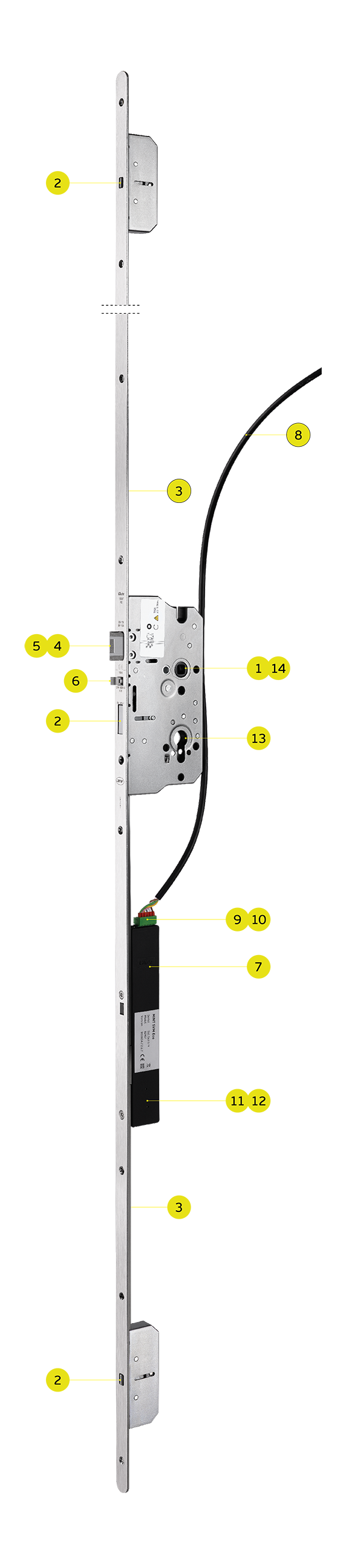

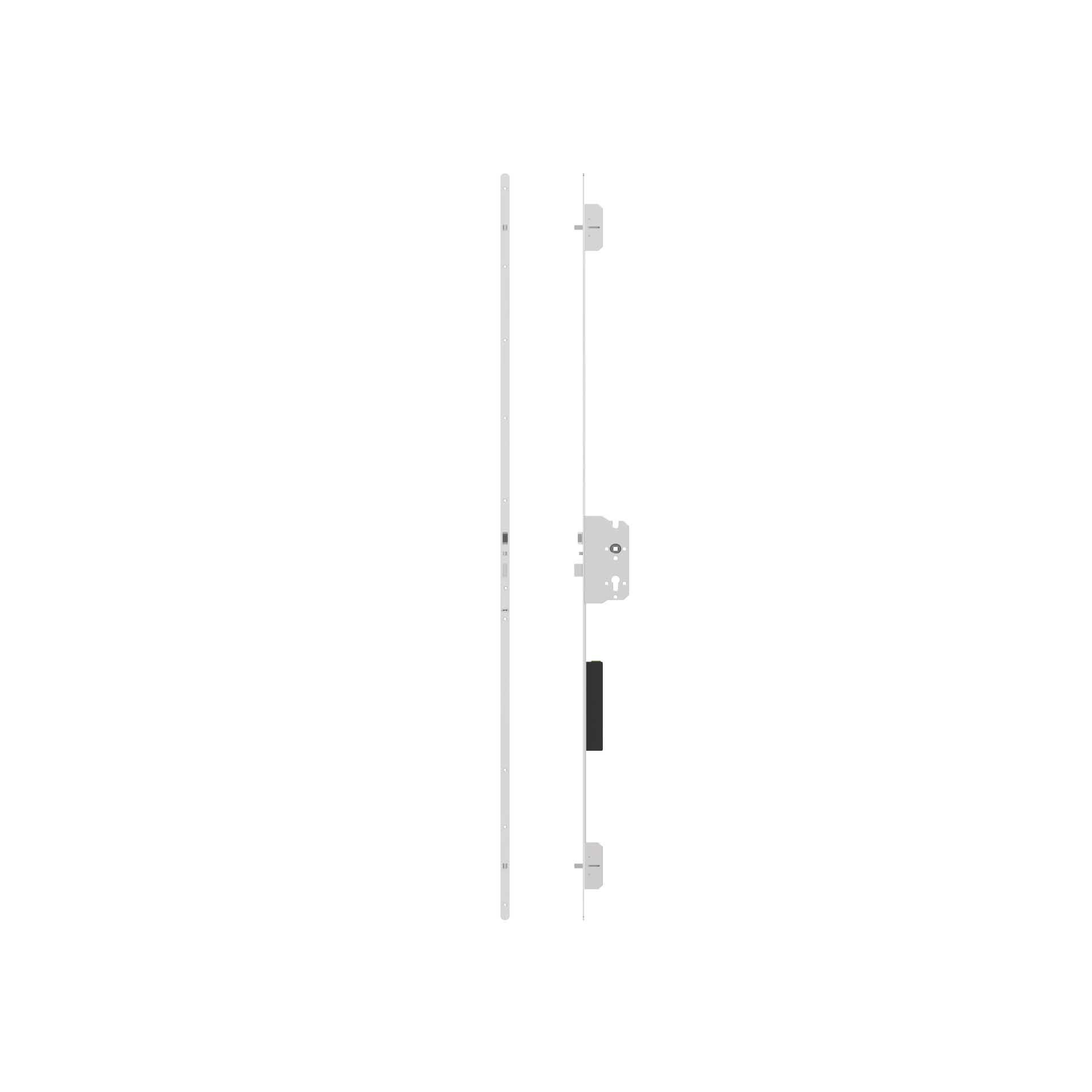

1 - 4-part clamp follower, square 9mm, panic E
2 - Three hardened deadbolts; 20 mm throw
3 - Slider protection: mechanical at top; cover at bottom
4 - Dampened, reversible DIN L+R comfort latch with latch blocking
5 - Smooth-running latch withdrawal for retracting the latch
6 - Self-locking with mechanical sequence control (electronically monitored to prevent unwated throwing of the deadbolt) and tampering protection (Mode 2+4)
7 - 4 operating modes and acoustric signals can be set via the DIP switch (Mode 1 = factory setting)
8 - Recommended connection cable: 6-pin; 10mt; 0.5mm2 (IN.20.035.4)
9 - Inputs: opening and/or daytime release function earthed (GND)
10 - Output: potential free; max. 125 V AC/300 mA or 30 V DC/1 A
11 - Feedback contact: Mode 1 'locked'; Mode 2+3 'door closed + locked'; Mode 4 for door drive 'open' as long as latch + bolt are retracted by the motor
12 - Power: 24 V DC/1.5 A (36 W); 12 V DC/3.9 A (47 W) possible
13 - Suitable for rotary knob cylinders
14 - Follower turning angle 35º
